Hard Blisters Packing Machine

Home >  Product >  Blisters Packing Machine >  Hard Blisters Packing Machine

Product

HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection
HY-Automatic Blister Packaging Machine High Efficiency for Product Protection

HY-Automatic Blister Packaging Machine High Efficiency for Product Protection

Get a Quote
  • Product Description

Product Description

product hy automatic blister packaging machine high efficiency for product protection527-0
Product Overview

HY-420 aluminum and plastic packaging machine

It is suitable for the aluminum-plastic, paper-plastic, aluminum-aluminum composite sealing packaging of tablets, honey pills, candies, ointments (liquids), disposable syringes and other irregular objects in the food, health care, pharmaceutical, cosmetics, medical devices and other industries.
1.Traction using servo motor driving technology (precise lead screw traction), synchronized and accurate, the travel
length is determined by the person
The machine interface can be set freely.
2.Configure the cursor alignment sealing device to make the block pattern uniform, clear and pleasing to the eye.
3.Functional conversion of aluminum-plastic (thermal forming) / aluminum-aluminum (cold forming), when implementing aluminum-aluminum packaging, only the mold needs to be replaced
Just the container and the corresponding feeder are needed.
4.Various packaging and feeding methods have successfully solved the problem of rapid feeding of various types of irregular tablets.
5.the forming, heat sealing, embossing, punching and other positions are all positioned by the same splined central shaft, and each position can be independent.
Lift mobile, easy to calibrate.
6.The innovative mold positioning device meets the general requirements of rapid mold change.
7.optional organic glass cover, so that the operating area is completely isolated from the transmission mechanism, eliminate pollution, easy to clean daily
product hy automatic blister packaging machine high efficiency for product protection527-1
product hy automatic blister packaging machine high efficiency for product protection527-2
Injection molding mold
product hy automatic blister packaging machine high efficiency for product protection527-3

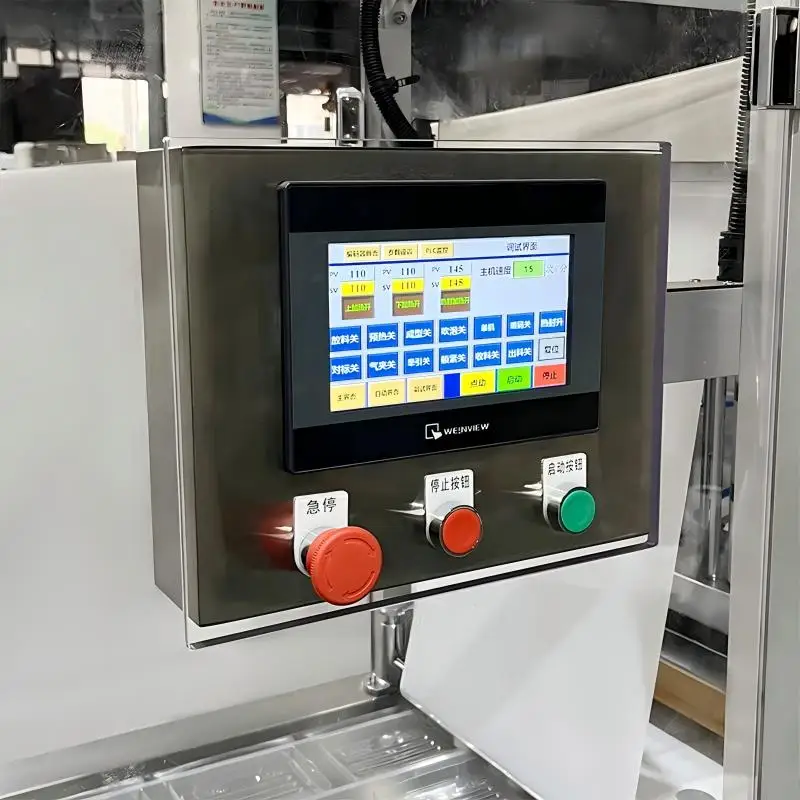

Multifunction touch screen
product hy automatic blister packaging machine high efficiency for product protection527-4

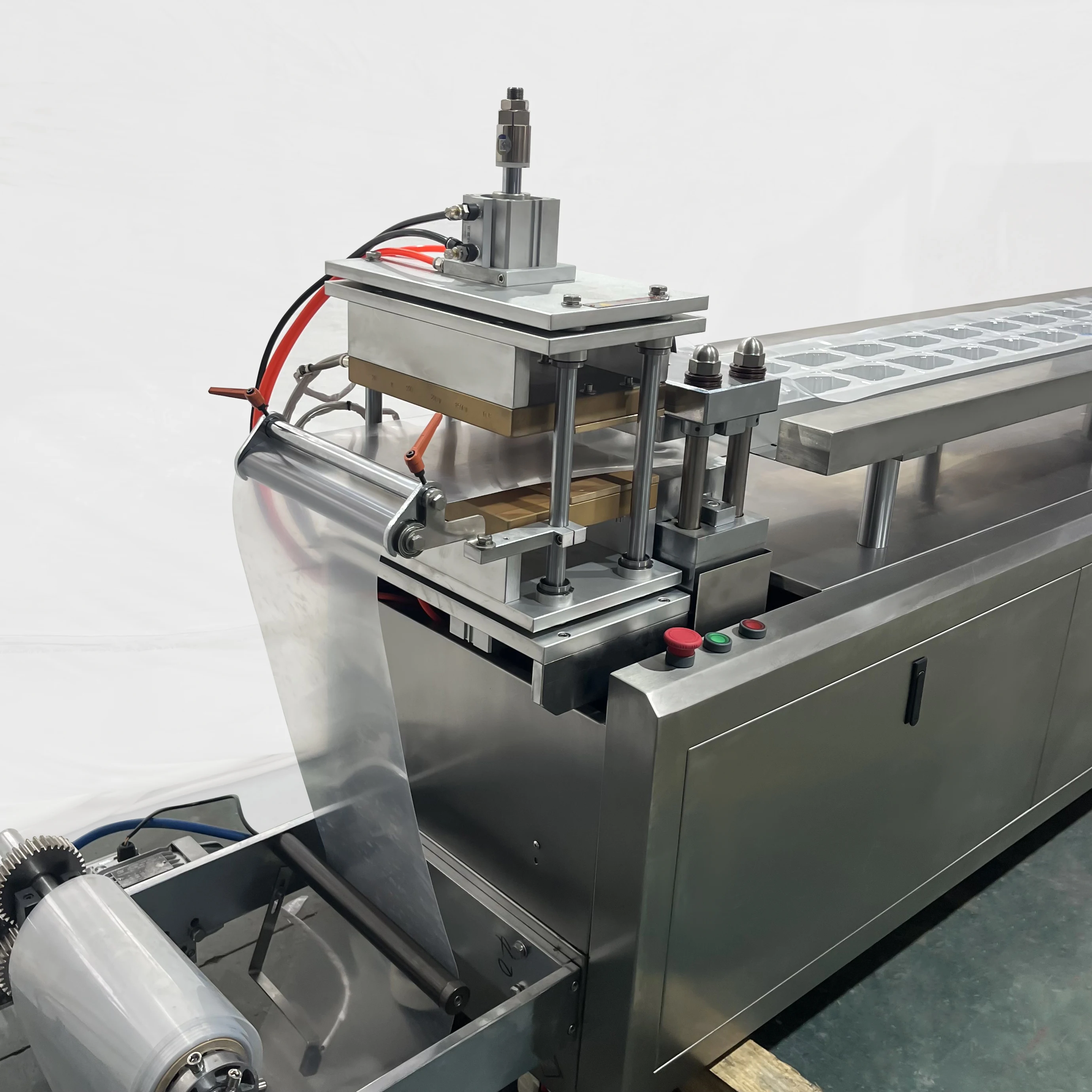

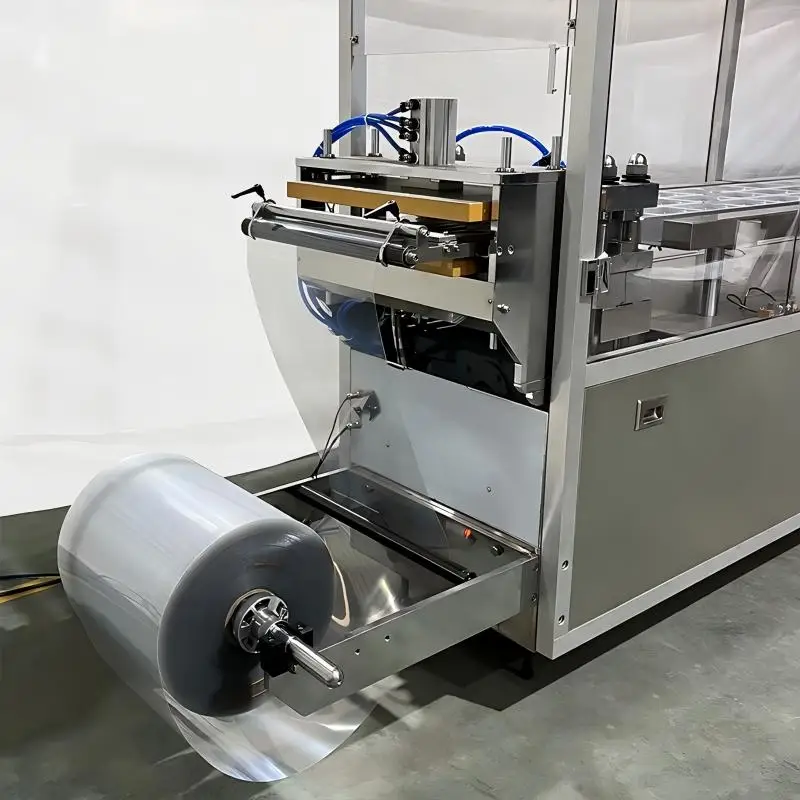

Membrane feeding conveyor belt
product hy automatic blister packaging machine high efficiency for product protection527-5

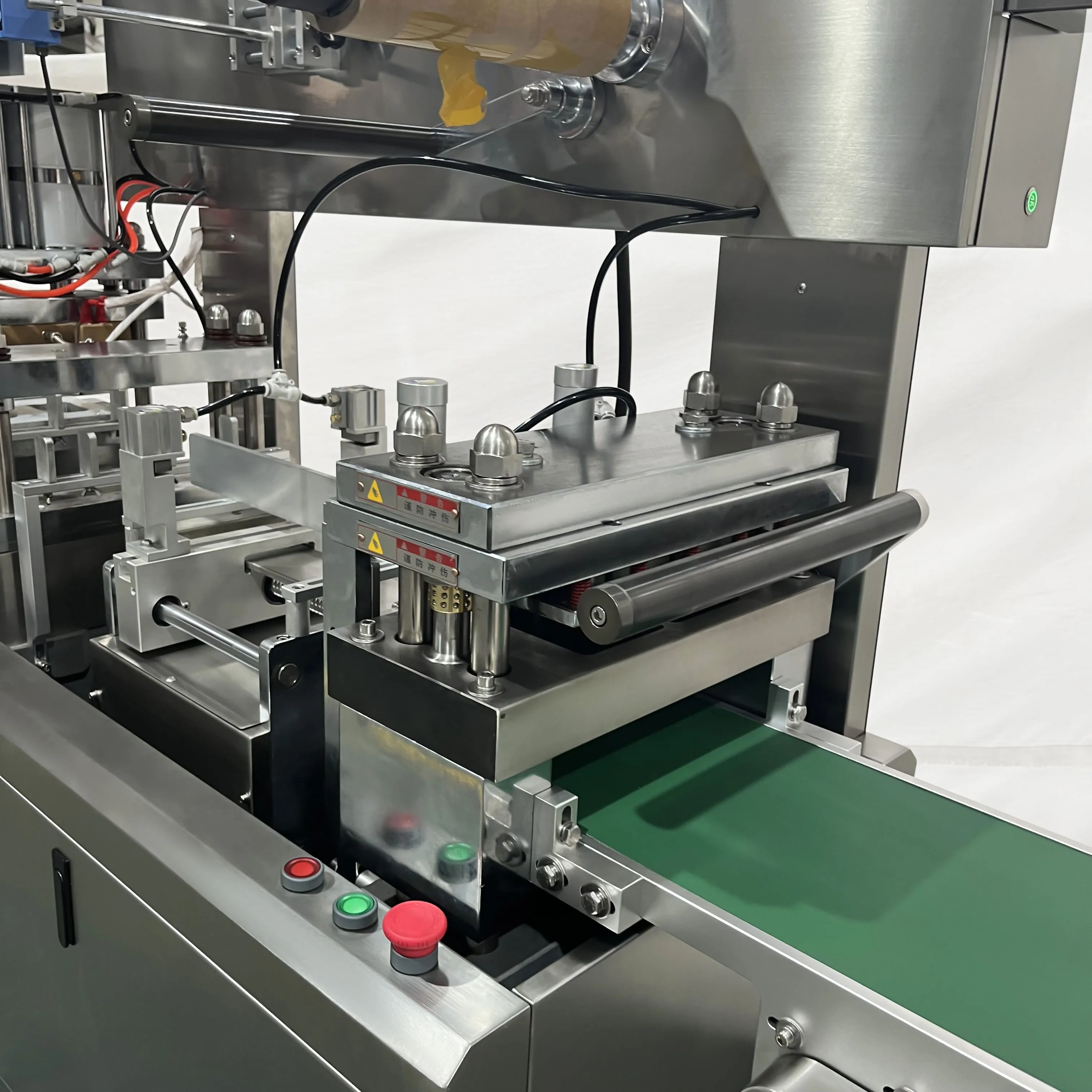

Finished product heat sealing and cutting

Parameters

model
HY-420S aluminum and plastic packaging machine
Stamping frequency (times/min)
10-30
Maximum formed area and depth (mm)
390×150×26 (standard: 390×150 × 14)
Travel range (mm)
40-160 (can be increased to 180mm according to user requirements)
Standard section (mm)
80×57
Air pressure (MPa)
0.4-0.7
Air flow
≥0.35m3/min
Total power of power supply
380V/220V 50Hz 9.7kw
Main motor power (kW)
2.2
PVC hard sheet (mm)
0.25-0.5×420
PTP aluminum foil (mm)
0.02-0.035×420
Dialysis paper (mm)
50-100g×420
Mold cooling
Tap water or circulating water
Dimensions (mm)
4300×850×1600（L×W×H）
Total weight (kg)
2100

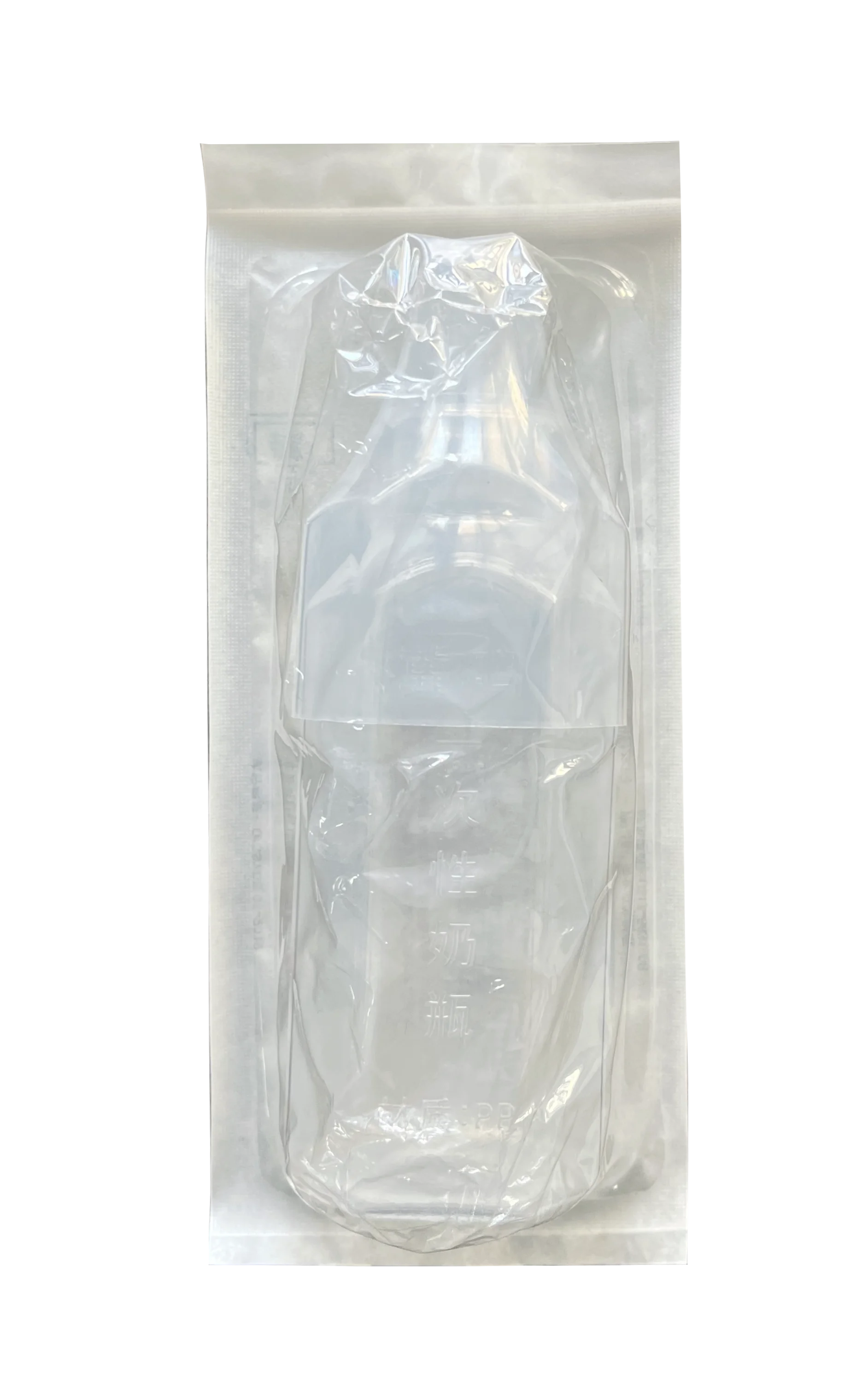

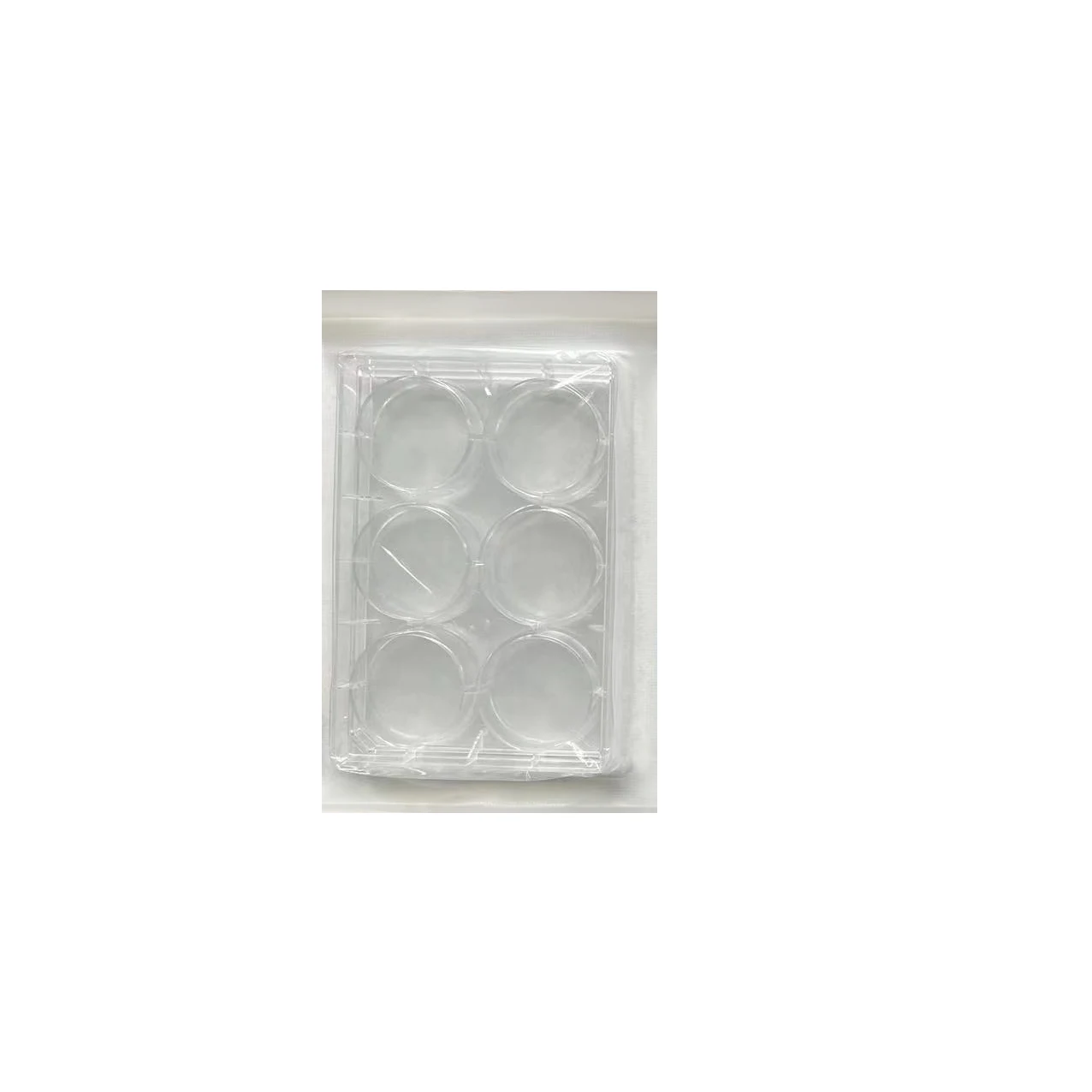

sample
product hy automatic blister packaging machine high efficiency for product protection527-6
product hy automatic blister packaging machine high efficiency for product protection527-7
product hy automatic blister packaging machine high efficiency for product protection527-8
product hy automatic blister packaging machine high efficiency for product protection527-9
product hy automatic blister packaging machine high efficiency for product protection527-10
More Details

product hy automatic blister packaging machine high efficiency for product protection527-11
product hy automatic blister packaging machine high efficiency for product protection527-12
product hy automatic blister packaging machine high efficiency for product protection527-13
