Common Bag Types Supported by Automatic Packing System

How Automatic Bagging Systems Handle Different Bag Formats

Core Capabilities of Automatic Bagging Systems in Managing Diverse Packaging Needs

Today's automatic bagging machines handle all sorts of packaging requirements without much trouble at all. They can work with everything from powdery substances to large items, getting it right most of the time. These systems come loaded with features like weight sensors, optical detectors, and programs that can be adjusted as needed. What makes them really stand out is how they deal with oddly shaped goods while still keeping pace at around 180 bags per minute. The modular setup means changing between different bag types takes no time whatsoever. Switch from regular flat pouches to those gusseted ones or even special formats? No problem, just a quick adjustment. This cuts down on machine stoppages and reduces the need for workers to constantly make manual changes. The sealing remains solid regardless of whether we're talking about plastic film layers or eco-friendly materials. And let's not forget the bottom line benefits either. According to Packaging Digest from last year, companies using these systems typically see waste reductions somewhere between 15% and 30%. Plus, they meet all the necessary regulations for food products and medicines too.

Integration of Packaging Equipment with Various Bag Structures and Container Specs

Servo-driven motion controllers synchronize bag handling, filling, and sealing stages to ensure precise material alignment across variable bag structures. Systems dynamically adjust to key structural parameters:

• Dimension tolerance: Accommodates bag widths from 50-600mm and lengths up to 1m
• Material compatibility: Processes polyethylene, foil laminates, and compostable films via adjustable heat or impulse sealing
• Closure integration: Precision sealing jaws handle zippers, spouts, and tear-notches with ±0.5mm accuracy

These capabilities maintain hermetic seals for contoured retail pouches or vented coffee bags. Integrated sensors continuously monitor seam quality, automatically diverting defective units to uphold output consistency.

Role of Form-Fill-Seal Technology in Modern Bagging Automation

The form-fill-seal or FFS tech really boosts what we can do with packaging since it makes custom bags right from the roll film as things are running. For granular products like coffee beans or sugar, most folks go with vertical FFS machines that make those pillow-shaped packs around exact measurements. On the other hand, horizontal flow wrappers work better for stuff like chocolates where they need those four sealed edges to keep everything looking neat and tidy. According to FlexPack Magazine from last year, these FFS setups actually cut down on wasted film by about 22%. That happens because they control how tight the film gets pulled and where exactly it cuts off. Some newer models connected to the internet can even adjust themselves based on how thick the material is and what's going on with the environment. They'll tweak settings automatically when there's humidity or temperature shifts so the seals stay good throughout all the production batches.

Vertical Form-Fill-Seal (VFFS) Machines and Compatible Bag Styles

Overview of VFFS Machines and Common Bag Types They Support

VFFS machines basically run the show when it comes to automating dry goods packaging these days. Around three quarters of all snack foods worldwide get packaged this way, though exact numbers can vary depending on who's counting. What makes these systems so useful? They create, fill, and seal bags vertically through heat pressing techniques. Think about those chip bags that look like pillows, the bigger gusseted packages for dog food, or even those convenient stand-up coffee pouches with zippers we've all come to love. Market folks are predicting big things for this industry too. Some estimates suggest the VFFS market could hit around $5.3 billion by 2034, growing at roughly 6.8% each year. Why? Because these machines can work with pretty much anything from cereal grains to powdered spices and even liquid sauces all on one production line, which saves manufacturers time and money.

Sealing Mechanisms Ensuring Consistent Pouch Integrity in VFFS Systems

Advanced VFFS machines use adaptive heat-sealing jaws that modulate pressure (15-40 psi) and temperature (120-200°C) based on real-time film thickness data. Dual-seal verification sensors detect micro-leaks in multi-layer laminates, reducing product waste by 23% compared to conventional systems and ensuring long-term shelf stability.

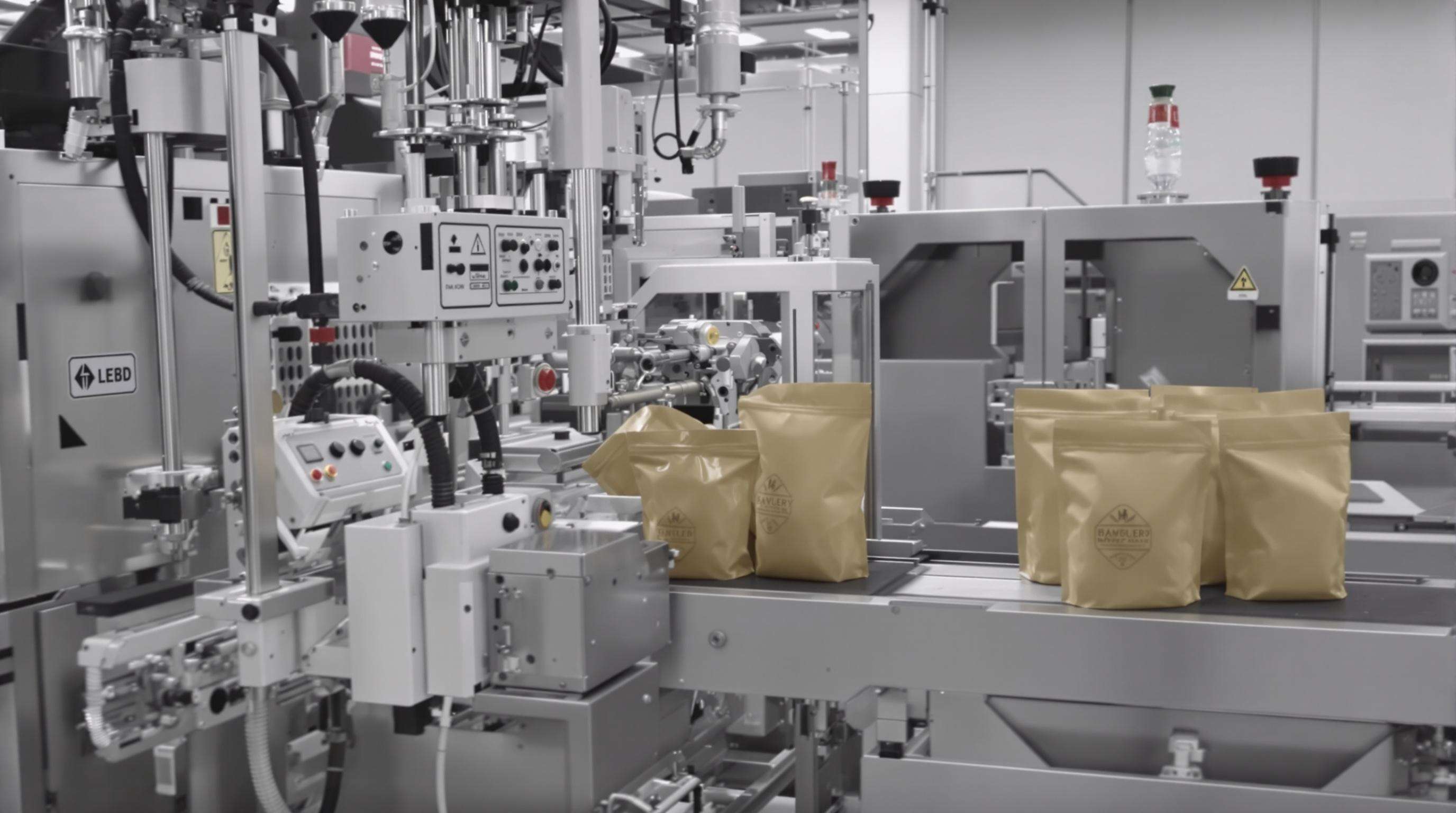

Case Study: Coffee Packaging With VFFS and Integrated Degassing Valves

A leading coffee producer achieved 99.4% bag integrity by integrating VFFS machines with nitrogen flushing and laser-perforated degassing valves. The system runs at 240 bags/minute with ±0.5g dosing accuracy for both whole bean and ground coffee, preserving aroma and extending shelf life without compromising throughput.

Smart VFFS Trends: Self-Diagnostics and IoT Connectivity for Predictive Maintenance

Next-generation VFFS units feature vibration analysis modules that predict servo motor failures up to 72 hours in advance. IoT-connected systems automatically recalibrate sealing parameters when switching between biodegradable PLA films and traditional polyethylene, maintaining 98% uptime and consistent seal quality across material transitions.

Horizontal Flow Wrappers for Flow Wrap Bag Applications

Functionality of Horizontal Flow Wrappers in High-Speed Automated Lines

Horizontal flow wrappers, or HFFS machines as they're often called, work by feeding products into a long strip of packaging film. The machine wraps these items horizontally first, then applies both lengthwise and crosswise seals to complete the package. These systems can handle around 200 packages every minute, making them great for things that are all pretty much the same size, like snack bars or those ready-to-eat frozen dinners we see in grocery stores. What makes these machines stand out is how their design fits right into existing production lines. They connect easily with whatever brings products to them from earlier stages and whatever boxes them up later on, creating completely automatic packaging processes. And even when running fast, the advanced controls keep the film tight enough so everything stays consistent in size. This matters because food manufacturers need to meet strict FDA and USDA standards for anything that touches edible products during packaging.

Advantages of Flow Wrap Packaging in Food and Confectionery Industries

Flow wrap packaging creates those tight seals that keep products fresh for longer periods. What's great about this method is that brands get complete visibility around all sides thanks to those high quality printed films wrapping the product. According to recent studies from PMMI in 2023, this approach cuts down on material waste somewhere between 18% and 22% when compared to traditional rigid containers. For things like chocolates and pastries, these heat formed film systems actually stop that annoying fat bloom issue because they maintain consistent sealing temps throughout production. And there are plenty of other handy touches too – think tear notches that make opening easier, plus special anti fog coatings so products look their best even when sitting in cold display cases at grocery stores.

Data Insight: 68% of Snack Producers Use HFFS for Flow Wrap Packaging (PMMI, 2023)

According to a recent PMMI industry report from 2023, most snack makers in North America have turned to horizontal form fill seal systems for their operations. These systems offer changeover times that are around 31 percent quicker compared to vertical options. The move toward automation has made things much smoother on potato chip production lines too. Manual handling has dropped by about 84 percent, and seal failures stay below half a percent which is pretty impressive. All this makes sense when we look at what consumers want these days. There's clearly been a big push towards portion control packaging. Take a look at flow wrapped snacks right now - nearly three quarters of them come in single serve packages containing less than 150 calories. The snack industry is definitely responding to changing consumer preferences here.

Pre-Made Pouch Systems and Stand-Up Pouch Compatibility

Growth of doypack and pre-made pouch machines for retail-ready stand-up pouches

Stand up pouches that are ready for retail display, particularly those in doypack style, have become really popular lately because they look good on shelves and customers tend to notice them. The newer pre made pouch machines can actually handle about 40 percent more volume compared to older equipment, which helps meet the growing need for packaging that takes up less space. These machines come with built in loading and compression features that keep the pouches standing straight even when filled with different types of products that vary in density. Before sealing, automated vision systems check if graphics are properly aligned so brands maintain their appearance consistently across all packages something retailers absolutely require for compliance purposes.

Filling and sealing challenges with zippers, spouts, and resealable closures

Adding functional features such as zippers and spout openings makes things quite complicated when it comes to automated bagging machines. When there's product residue getting onto those sealing areas, it really messes with the seal quality. That's why many newer systems now incorporate laser guided nozzles along with pressure sensitive jaw mechanisms to get better accuracy during the sealing process. With resealable options specifically, manufacturers need to strike a balance between keeping the closure strong enough to open again but still create a tight seal that keeps air out. Temperature management becomes super important here too, needing to stay within about plus or minus 2 degrees Celsius. This level of control matters a lot for items where freshness is absolutely critical, think coffee beans or premium pet foods that lose their quality quickly if exposed to oxygen.

Balancing demand for sustainable pouch materials with heat sealing performance

The push for sustainability sometimes runs into problems when it comes to how well stand-up pouches actually seal. Recyclable monolayer films need about 15 to maybe even 20 percent hotter temperatures to seal properly compared to regular laminates, which can mess with their protective qualities. A recent look at sustainability versus performance from last year showed something interesting though. New sealing tech has managed to get the same strong seals using plant based materials simply by adjusting how long they apply heat and the pressure used during the process. What this means is better recycling options without having to worry about those pouches falling apart on automated production lines running at full speed.

Specialty Bag Types: Valve Bags and Multi-Layer Laminated Pouches

Automatic Bagging Solutions for Valve Bags in Coffee and Agricultural Sectors

Valve bags with those little self sealing corners have become pretty standard in the coffee world as well as for packing fertilizers and grains in agriculture. Most automatic packing lines use either augers, impellers or just let stuff drop in by gravity through the valve opening. What makes them so good is that special closing mechanism that kicks in right after filling. For coffee lovers, this means their precious beans stay aromatic instead of getting stale. And when dealing with powdery stuff, it stops moisture from sneaking in and ruining everything. The machines actually trap about 99 point something percent of dust particles, which keeps workers safe from inhaling all that powder and maintains quality even when running thousands of bags per day.

Ensuring Seal Integrity in Multi-Layer Laminated Pouches with Advanced Sealing Tech

The multi layer pouches made with PET, aluminum foil, and polyethylene need really careful sealing work when handling things like meds or dried food products that can't tolerate contamination. The equipment has these heat control bars that tweak temperature settings within about 2 degrees Celsius depending on how thick the material is, plus they apply pressure at just the right points so the layers don't come apart during bonding. For quality checks, there's laser scanning that spots those tiny leaks we can't see with our eyes, which means bad batches get thrown out before they reach customers. This whole process cuts down defects by roughly 18 percent over traditional approaches. What this all adds up to is better shelf life for packaged goods since nothing gets in from outside air or humidity over time.

Biodegradable vs. Polyethylene Valve Bags: Performance Trade-offs in VFFS Systems

Comparing biodegradable PLA valve bags to regular polyethylene in vertical form fill seal systems reveals some important differences worth considering. Regular polyethylene can handle sealing temperatures all the way up to 160 degrees Celsius and manages about 120 bags per minute without any seam issues, making it great for rough stuff like agricultural products. The eco-friendly alternatives definitely have their green benefits, but they come with limitations. These biodegradable options need much cooler sealing temps around 120 degrees and slower production speeds below 80 bags per minute to prevent burning through the material. Looking at actual field results shows that standard polyethylene actually keeps things fresh about 30% longer for moisture sensitive items such as fertilizers. This means companies really need to think carefully about what works best for their specific applications when trying to balance sustainability goals with practical performance requirements in packaging operations.

FAQs

What types of bags can automatic bagging systems handle?

Automatic bagging systems can process various bag types including flat pouches, gusseted bags, valve bags, flow wrap bags, and stand-up pouches with zippers and spouts.

How do automatic bagging systems ensure the integrity of seals?

Systems utilize advanced sealing technologies such as adaptive heat-sealing jaws with real-time adjustments, dual-seal verification sensors, and laser scanning to detect micro-leaks and maintain consistent seal quality.

What are the benefits of form-fill-seal technology in packaging?

FFS technology allows for creating custom bags from roll film in real-time, reducing film waste, and adapting to environmental changes for maintaining seal integrity across batches.

Are there performance trade-offs between biodegradable and polyethylene bags?

Biodegradable PLA bags require cooler sealing temperatures and slower production speeds compared to polyethylene bags, which affects throughput and freshness of moisture-sensitive items.
