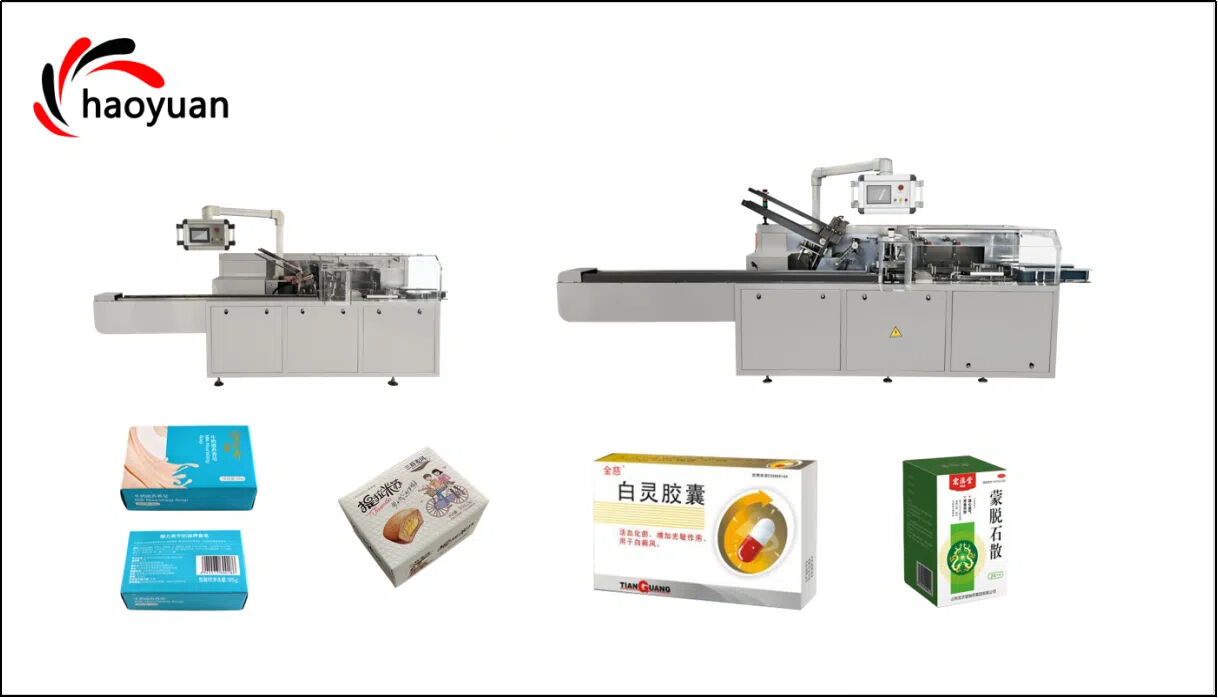

Key Components of a Cartoning Machine
1. Carton Feeder System
A good carton feeder system makes all the difference when it comes to getting those cartons into position on the machine. Most modern cartoning equipment relies on either pneumatic systems or mechanical components to line up and push the cartons along their path. What this does is cut down on those annoying bottlenecks that slow things down during production runs. And here's another benefit worth mentioning: these systems can handle various carton dimensions pretty easily. That means less downtime for adjustments between different product runs. Setup times get slashed, so production keeps moving forward instead of grinding to a halt every time there's a size change needed.
2. Forming and Erecting Mechanism
Carton forming machines basically take those flat cardboard sheets and turn them into sturdy boxes ready for filling. Modern automated systems can work with all sorts of box designs from standard rectangular containers to specialty shapes needed for irregular products. What makes these machines so versatile? They come packed with smart sensors that keep an eye on every step of the forming process as it happens. These sensors catch problems early before they become bigger issues down the line. The result? Cartons that hold their shape properly when loaded with goods, no matter how fast the production line is running. Manufacturers appreciate this because it means fewer rejected boxes and less wasted material over time.
3. Product Loading Zone
The product loading area makes sure items get put into boxes without issues. When things are moving fast or dealing with certain types of goods, operators might choose between hand packing or automated systems based on what works best for the situation. This flexibility means the setup can handle all sorts of production needs without breaking anything along the way. Good loading practices keep products safe during packing and help everything move through the system faster too. Factories that get this right see better results across their whole operation.
4. Sealing and Closing Units
The sealing and closing units play a critical role in keeping cartons tightly shut so products stay uncontaminated during storage and transport. Industry standard methods generally fall into two main categories: hot melt adhesives or tape sealing techniques, both bringing their own set of pros and cons to the table. Hot melt creates stronger bonds that hold up well under various conditions, whereas tape sealing gets the job done faster without requiring complex equipment setup. Most modern sealing systems come equipped with built-in quality checks that scan every sealed carton before it leaves the production line. These checks help catch any weak seals early on, which cuts down on wasted materials and keeps the whole operation running smoothly day after day.
The Cartoning Process: Step-by-Step Operation
1. Carton Blank Feeding and Orientation
Cartoning starts when those empty boxes get fed into the machine from their stacks. Getting this right matters because the orientation system needs to line everything up properly. Most machines actually have sensors built in that spot check where things are going and fix any problems before they become bigger issues down the line. Good feeding design really makes a difference here since it keeps operations running smoothly and cuts down on those frustrating stoppages that eat into production time. When blanks move through and orient themselves correctly, the whole process flows much better without all those annoying interruptions that slow things down.
2. Box Formation and Stabilization
Once the blank cartons get fed into the machine and properly aligned, forming the actual boxes marks the next important step in the cartoning workflow. At this point, the machinery starts shaping those flat sheets into three dimensional containers while keeping them stable enough for whatever products will eventually go inside. To keep everything from collapsing during production, there are all sorts of mechanical supports and guide rails that hold things together throughout the process. Sensors come into play here too, constantly checking on how well each box is taking shape and stepping in with adjustments whenever something looks off track. Getting this right matters a lot because if boxes aren't formed correctly, they just won't hold up when filled with products later on.
3. Product Insertion Methods
When putting products into cartons, there are several different approaches depending on what exactly needs packaging. Some setups rely on robotic arms that grab items with pinpoint accuracy and can handle all sorts of shapes and sizes. Other lines go with conveyor belts that move products quickly through the system, great for high volume runs. Picking the right method really comes down to what kind of goods we're talking about here. Safety matters too when dealing with fragile items or sharp edges. Going automated definitely pays off in most cases though. Machines can crank out boxes at twice the speed of manual workers while cutting down on staffing expenses by around 30% according to recent industry reports. That kind of boost makes a real difference in competitive markets where every penny counts.
4. Final Sealing and Quality Checks
At the end of the cartoning line comes the all important sealing stage where boxes get properly shut down. This step keeps whatever's inside safe from getting dirty or leaking out during transport. For quality control, workers run several tests on each box. They check weights against what should be there and scan barcodes to make sure everything matches up correctly. Keeping machines running smoothly matters a lot too. Technicians need to service and adjust equipment regularly so it continues working right day after day. Without this attention to detail, products might not meet company specs when they leave the facility for shipping.
Types of Cartoning Machines
1. Horizontal vs Vertical Cartoners
When deciding between horizontal and vertical cartoners, the choice really comes down to what kind of operation someone runs and how much room they actually have available. Horizontal models tend to work better with bigger items like large appliances or bulky packages since they can handle these at higher speeds too. That makes them great picks for factories where speed matters most. On the flip side, vertical cartoners take up way less space on the factory floor. These compact machines fit nicely into corners or tight spots where horizontal units just wouldn't go. For small businesses operating out of converted garages or warehouses with weird layouts, this can make all the difference. Looking at actual product dimensions alongside warehouse blueprints gives manufacturers a clearer picture of which system would perform best without wasting valuable real estate.
2. Semi-Automatic Systems for Flexibility
Semi automatic cartoning systems offer pretty good flexibility sitting somewhere between fully manual work and complete automation. These systems work really well for companies dealing with all sorts of different sized products and smaller batch productions because operators can quickly tweak things based on what's needed at any given moment. Labor gets used more efficiently since workers still do some hands on tasks but don't slow down the whole operation too much. While these semi auto setups definitely give businesses room to adjust when market conditions change, there are limits to how fast they can respond compared to fully automated lines.
3. Continuous Motion Automatic Machines
Cartoning machines that run continuously are built to keep things moving without stopping, which really boosts how much gets done. They work best when there's lots of product to package, especially places where getting stuff out the door quickly matters most for hitting those daily quotas. Setting these machines up takes some effort upfront because they're pretty complex systems, but once running they cut down on wasted time between batches and generally get more done throughout the day. The machines just keep going without those annoying breaks that slow down other equipment, so factories that need consistent output find them worth all the initial hassle. Most manufacturers who've switched to continuous motion models report noticeable improvements in their bottom line after the first few months of operation.
Benefits of Automated Cartoning Systems
1. Increased Production Speed and Consistency
Cartoning systems that are automated really boost how fast things get made and keep everything consistent, something companies need to stay ahead in today's markets. The time it takes to complete each cycle drops quite a bit when these systems are in place, so factories can crank out more products without breaking a sweat just to keep up with what customers want. What's interesting about automation is how it keeps quality the same across all units produced. There's much less chance of mistakes happening compared to manual work, which means every box looks and feels exactly like the one before it. That kind of uniform packaging matters a lot for brands trying to build trust with their audience. When operations run smoother and faster thanks to automation, businesses naturally gain an advantage over competitors who still rely on traditional methods.
2. Reduced Labor Costs and Human Error
The biggest draw of automated cartoning systems tends to be what happens to the bottom line when it comes to labor costs and those pesky human mistakes we all make sometimes. When companies bring in automation technology, they generally see a big drop in how much they need workers doing repetitive tasks day after day, which obviously cuts down expenses quite a bit over time. Less people handling the actual packaging work means far fewer errors showing up on the production floor too. Think about boxes getting sealed wrong or labels put on backwards these things just don't happen as often anymore. And let's talk numbers for a second. Most businesses find that their money invested in automation pays itself back pretty quickly usually within three to five years depending on volume. That makes sense economically speaking especially when looking at long term savings versus short term upfront costs.
3. Enhanced Product Safety and Hygiene
When products go through automated cartoning instead of being handled manually, they stay safer and cleaner overall since there's just less contact involved, cutting down on possible contamination risks. Many modern systems actually include special sealing methods plus some kind of sterilization step too, giving an extra layer of protection for what gets packaged. Getting those industry hygiene standards right becomes way easier when everything runs automatically because machines just do the same thing every time without fail. Take the food industry for instance, or pharmaceutical manufacturing where even tiny amounts of contamination can spell disaster. Automated cartoning helps keep things safe while making it simpler to meet all those complicated regulations that come with producing consumable goods. Companies save headaches on compliance paperwork at the same time their products remain protected throughout packaging.
